HUAWEI AR5710S-S8T2X Router Unboxing

The HUAWEI eKitEngine AR series router (AR for short) is a new generation of business routing gateway device integrating routing, switching, VPN, and security functions from Huawei Technologies Co.

Moduletek Laboratory purchased a HUAWEI eKitEngine AR5710S-S8T2X router, which can test the 1G/10G SFP product series, and the following takes you through the unboxing and acceptance.

Table 1 Device Official Description Information

Model Number	Part Code	Description
AR5710S-S8T2X	50010721	210GE SFP+/2.5GE Copper Combo WAN, 4GE Copper LAN, 4GE Combo LAN, 1USB2.0

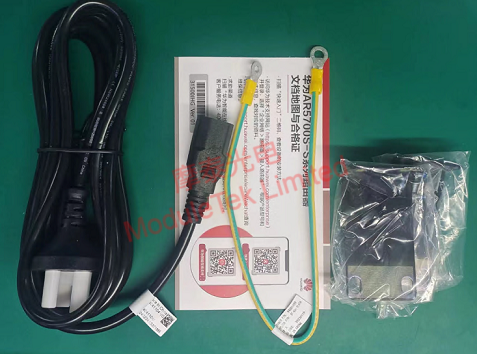

Accessories include a package of screws with rack lugs, non-slip pads, certificate of compliance, power cord, and grounding wire.

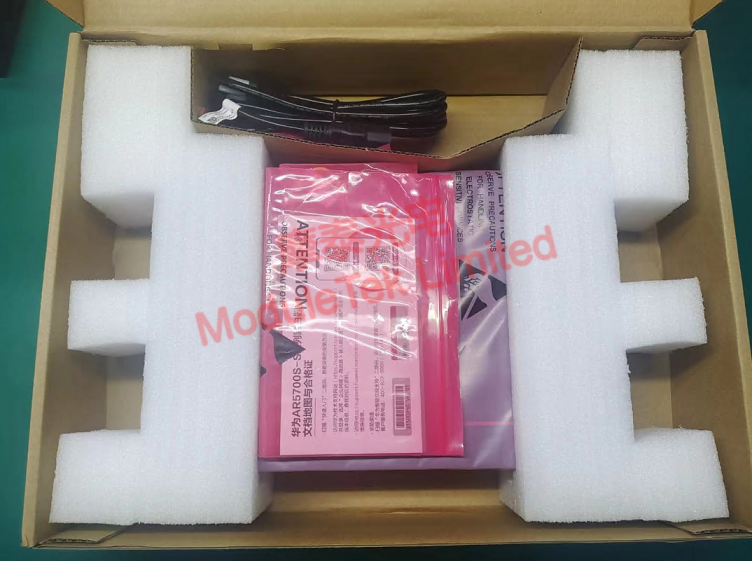

Figure 1 AR5710S-S8T2X Main Package

Figure 2 AR5710S-S8T2X Accessories

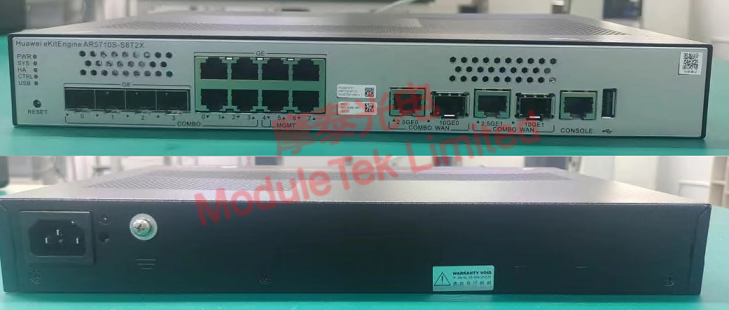

The front panel mainly has four 1G SFP ports, two 10G SFP+ interfaces, eight 1G RJ45 ports (four of which are multiplexed with the SFP ports), two 2.5G RJ45 ports (multiplexed with the SFP+ ports), one USB port, and one RJ45 serial port; the rear panel mainly has power access holes.

Figure 3 AR5710S-S8T2X front/back panel

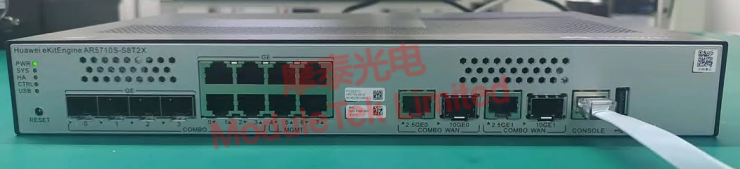

Access to the power cord to power up the device, start without obvious noise.

Figure 4 AR5710S-S8T2X device power-up

Use the RJ45 to DB9 serial cable to connect to the router through the serial port; the default baud rate of the device is 9600, no initial account/password, log in to the console, execute the command “display version ” to view the device model and system version information.

Use 10G LR optical module of Moduletek to access the SFP+ port, and the module type can be recognized normally.

The 1G/10G optical modules of Moduletek can be well compatible with HUAWEI's related equipment, welcome to buy.

If you have any questions about the above content, please contact us via email: sales@moduletek.com
