Moduletek Limited QSFP56 200G Passive DAC Test Report
Time: 2024-11-25
Moduletek has newly launched a 200G passive DAC product with model number DAC-QSFP-200G-P-xxAWG-aa.aaM, encapsulated with QSFP, 4-channel 50G PAM4 signals, and a transmission distance of up to 3 meters. Moduletek Laboratory has tested the prototype of this product, which is convenient for you to further understand the product's performance indexes and the effect of actually using the machine.
1. Product Pictures

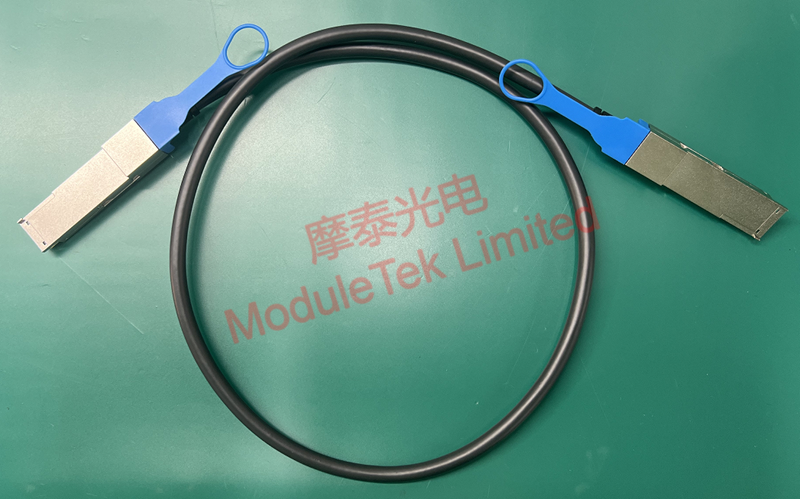

Figure 1 Moduletek 200G DAC picture
2. On-line test
Taking DAC-QSFP-200G-P-30AWG-1M as an example, it was tested on Arista DCS-7060DX4-32-F and Mellanox MSN4700-WS2FC respectively, and the tests were normal.
Test results on Arista DCS-7060DX4-32-F as follows.
Identify results:
LINK results:
Test results on Mellanox MSN4700-WS2FC as follows.
Identify results:
LINK results:
200G passive DACs of Moduletek are tested on mainstream switches and have good compatibility, welcome to buy them.
Moduletek Limited is at your service.
If you have any questions about the above content, please contact us via email: sales@moduletek.com
