Compatibility Of Huawei SFP-10GBaseT-SR Electrical Port Module

The SFP-10GBaseT-SR electrical interface module products of HUAWEI, which support 100M/1G/2.5G/5G/10Gbps rate, Moduletek Laboratory has tested the prototype of this product, to facilitate further understanding of the product's actual use of the effectiveness of the machine.

1. Product Description

SFP-10GBaseT-SR module supports 30m link length at 10G rate for CAT6e and above cables, 30m link length at 2.5G/5G for CAT5e and above cables, and 100m link length at 100M/1G rate. The official description and the physical appearance of the module are as follows:

Figure 1 SFP-10GBaseT-SR Official Metrics

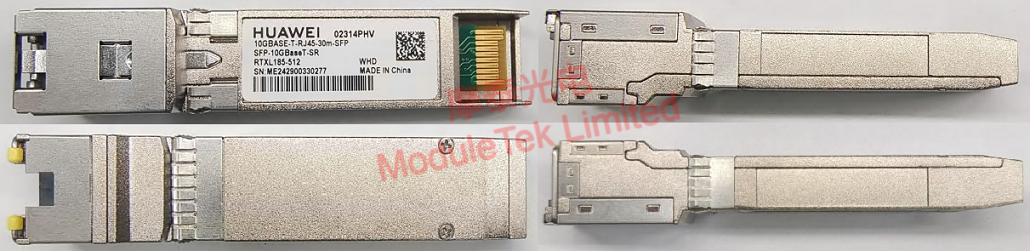

Figure 2 SFP-10GBaseT-SR physical appearance

2. Module on-boarding effect

Connect the SFP-10GBaseT-SR module to Huawei AR5710S-S8T2X switch (version:V600R023C10SPC100) ,and connect the built-in RJ45 port on the peer end of CISCO WS-C3560CX-8XPD-S switch by a Cat6A cable. By adjusting the interface speed of the Cisco switch, SFP-10GBaseT-SR can successfully establish a LINK at speeds of 100M/1G/2.5G/5G/10G and support normal service operation, the module information can be recognized by the switch normally, such as the module type, vendor name, serial number, transmission distance and so on, and there is no alarm phenomenon.

Table 1 SFP-10GBaseT-SR uplink test

Item	Information read by the switch
Identify
LINK with ping through (10G rate)
LINK with ping through (5G rate）
LINK with ping through (2.5G rate)
LINK with ping through (1G rate)
LINK with ping through (100M rate)

3. On which devices the module is supported

Not all Huawei 10G switches can support the SFP-10GBaseT-SR module. According to the official materials of Huawei, Moduletek Laboratory has summarized that the following platforms support the use of the SFP-10GBaseT-SR module.

Table 2 SFP-10GBaseT-SR Compatible Device List

Device Series	Version Requirement	Description
NetEngine AR6100	V300R023C10 and later versions
NetEngine AR6200	V300R023C10 and later versions
NetEngine AR6300	V300R023C10 and later versions
CloudEngine S16700	V600R023C and later versions	100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
S5700	V200R023C10 and later versions
S6700	V200R023C10 and later versions
CloudEngine S6700	V600R023C10 and later versions	100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
S620	V600R024C00 and later versions	100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
CloudEngine S8700	V600R024C00 and later versions	100M and 1GE rates are not supported when the 25GE optical interface of V600 version equipment is used
eKitEngine AR5700S	V600R023C10 and later versions
NetEngine AR700	V300R023C10 and later versions
NetEngine AR5700	V600R023C10 and later versions
NetEngine AR6700	V600R023C10 and later versions
NetEngine AR8000	V600R023C10 and later versions

Note: 1. The specific supported rate is related to the interface;

2. The list of compatible devices is as of the date of publication, and new models may be added in the future, so please refer to Huawei's official website for details.

From the actual test situation, the module's performance on the switch is in line with Huawei's official claims.

Moduletek Limited is at your service.

If you have any questions about the above content, please contact us via email: sales@moduletek.com
